Faital Pro 12PR300 LF Driver

€ 214.00 *Standaard Prijs is RRP exclusief btw € 258.94 inclusief btw

Op bestelling leverbaar

Aantal

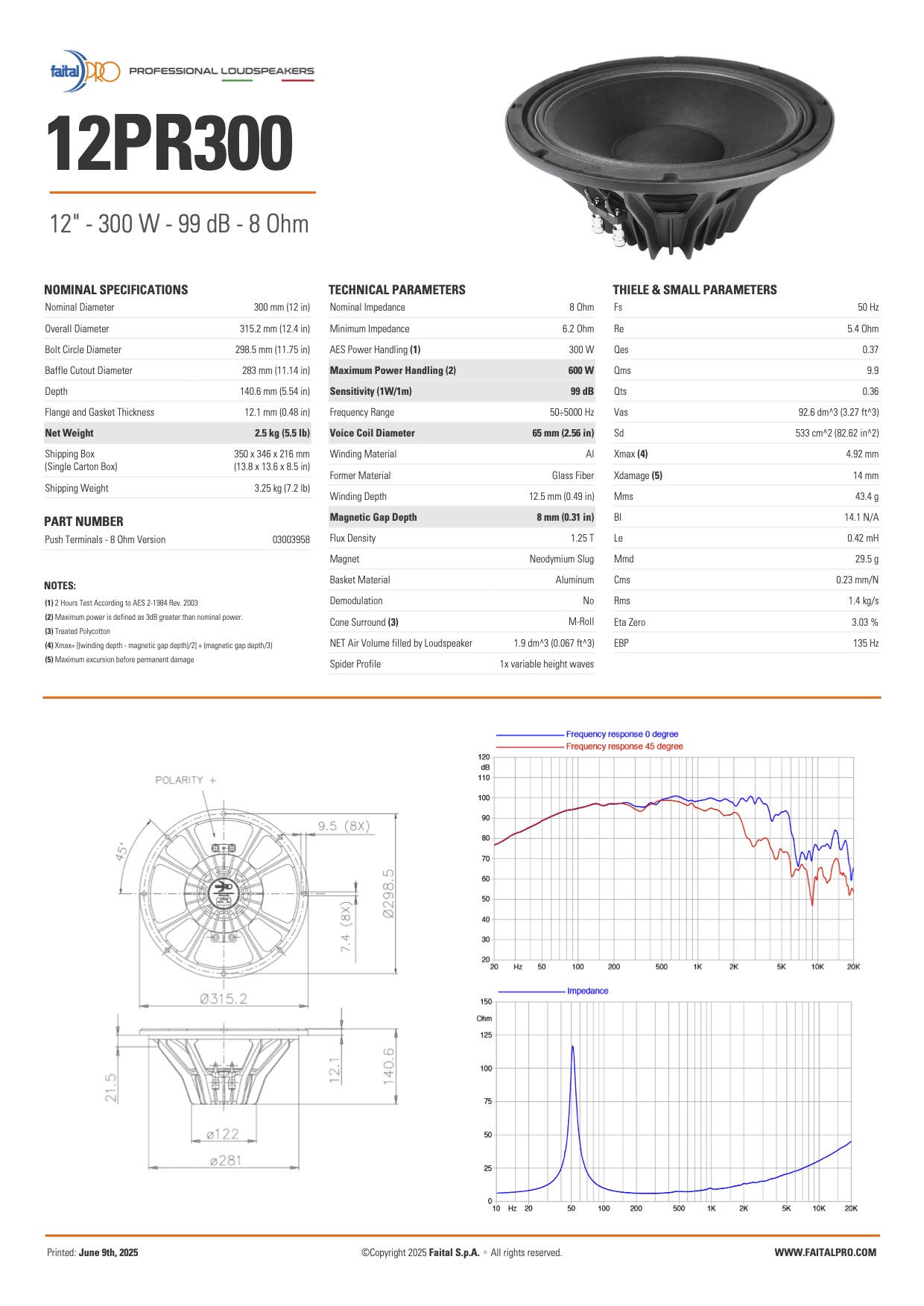

NOMINAL SPECIFICATIONS
Nominal Diameter	300 mm (12 in)
Overall Diameter	315.2 mm (12.4 in)
Bolt Circle Diameter	298.5 mm (11.75 in)
Baffle Cutout Diameter	283 mm (11.14 in)
Depth	140.6 mm (5.54 in)
Flange and Gasket Thickness	12.1 mm (0.48 in)
Net Weight	2.5 kg (5.5 lb)
Shipping Box	350 x 346 x 216 mm
(Single Carton Box)	(13.8 x 13.6 x 8.5 in)
Shipping Weight	3.25 kg (7.2 lb)


TECHNICAL PARAMETERS
Nominal Impedance	8 Ohm
Minimum Impedance	6.2 Ohm
AES Power Handling (1)	300 W
Maximum Power Handling (2)	600 W
Sensitivity (1W/1m)	99 dB
Frequency Range	50÷5000 Hz
Voice Coil Diameter	65 mm (2.56 in)
Winding Material	Al
Former Material	Glass Fiber
Winding Depth	12.5 mm (0.49 in)
Magnetic Gap Depth	8 mm (0.31 in)
Flux Density	1.25 T
Magnet	Neodymium Slug
Basket Material	Aluminum
Demodulation	No
Cone Surround (3)	M-Roll
NET Air Volume filled by Loudspeaker	1.9 dm^3 (0.067 ft^3)
Spider Profile	1x variable height waves
THIELE AND SMALL PARAMETERS
Fs	50 Hz
Re	5.4 Ohm
Qes	0.37
Qms	9.9
Qts	0.36
Vas	92.6 dm^3 (3.27 ft^3)
Sd	533 cm^2 (82.62 in^2)
Xmax (4)	4.92 mm
Xdamage (5)	14 mm
Mms	43.4 g
Bl	14.1 N/A
Le	0.42 mH
Mmd	29.5 g
Cms	0.23 mm/N
Rms	1.4 kg/s
Eta Zero	3.03 %
EBP	135 Hz
