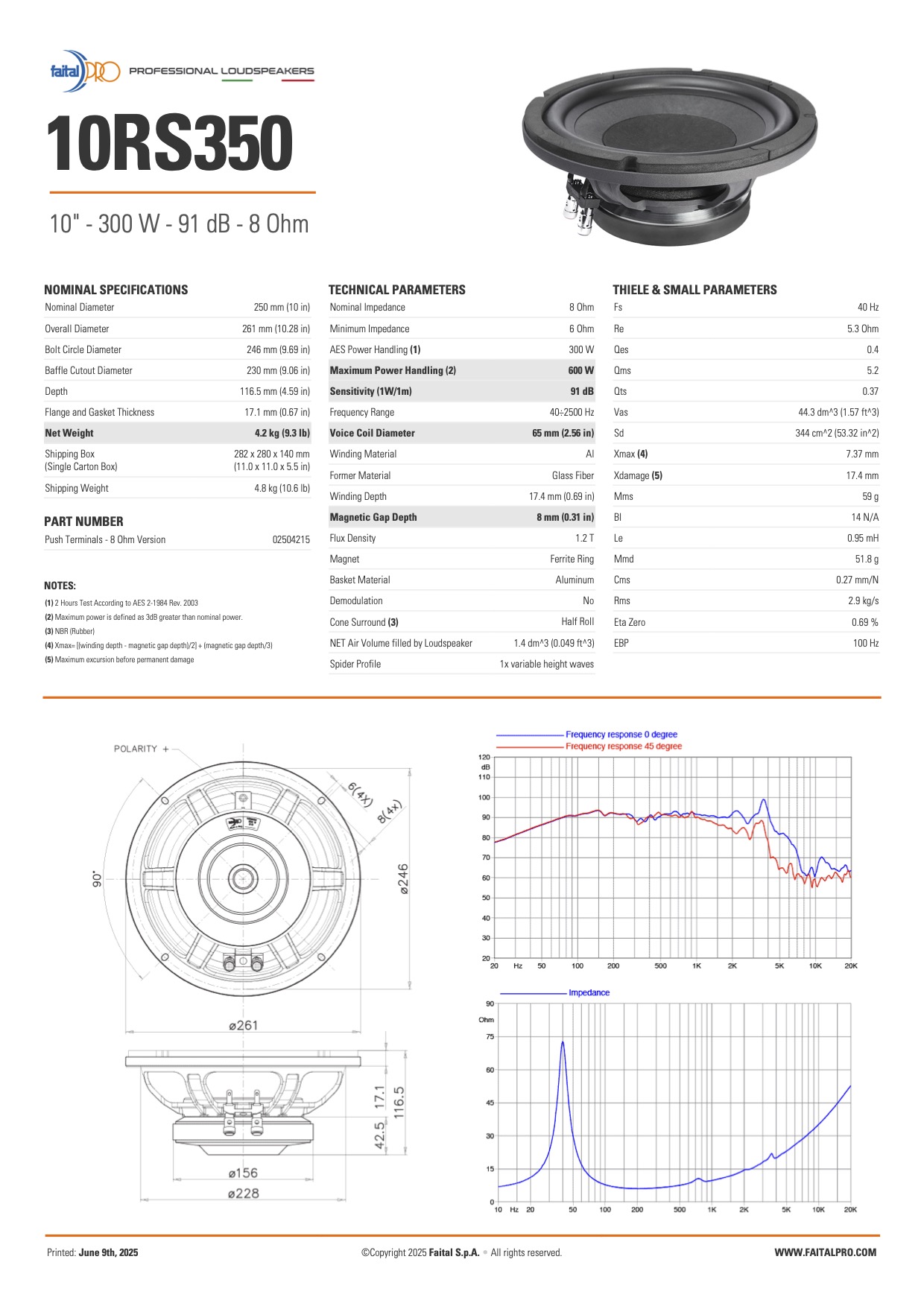

Faital Pro 10RS350 LF Driver

€ 184.00 *Standaard Prijs is RRP exclusief btw € 222.64 inclusief btw

Op bestelling leverbaar

Aantal

NOMINAL SPECIFICATIONS
Nominal Diameter	250 mm (10 in)
Overall Diameter	261 mm (10.28 in)
Bolt Circle Diameter	246 mm (9.69 in)
Baffle Cutout Diameter	230 mm (9.06 in)
Depth	116.5 mm (4.59 in)
Flange and Gasket Thickness	17.1 mm (0.67 in)
Net Weight	4.2 kg (9.3 lb)
Shipping Box	282 x 280 x 140 mm
(Single Carton Box)	(11.0 x 11.0 x 5.5 in)
Shipping Weight	4.8 kg (10.6 lb)


TECHNICAL PARAMETERS
Nominal Impedance	8 Ohm
Minimum Impedance	6 Ohm
AES Power Handling (1)	300 W
Maximum Power Handling (2)	600 W
Sensitivity (1W/1m)	91 dB
Frequency Range	40÷2500 Hz
Voice Coil Diameter	65 mm (2.56 in)
Winding Material	Al
Former Material	Glass Fiber
Winding Depth	17.4 mm (0.69 in)
Magnetic Gap Depth	8 mm (0.31 in)
Flux Density	1.2 T
Magnet	Ferrite Ring
Basket Material	Aluminum
Demodulation	No
Cone Surround (3)	Half Roll
NET Air Volume filled by Loudspeaker	1.4 dm^3 (0.049 ft^3)
Spider Profile	1x variable height waves
THIELE AND SMALL PARAMETERS
Fs	40 Hz
Re	5.3 Ohm
Qes	0.4
Qms	5.2
Qts	0.37
Vas	44.3 dm^3 (1.57 ft^3)
Sd	344 cm^2 (53.32 in^2)
Xmax (4)	7.37 mm
Xdamage (5)	17.4 mm
Mms	59 g
Bl	14 N/A
Le	0.95 mH
Mmd	51.8 g
Cms	0.27 mm/N
Rms	2.9 kg/s
Eta Zero	0.69 %
EBP	100 Hz
