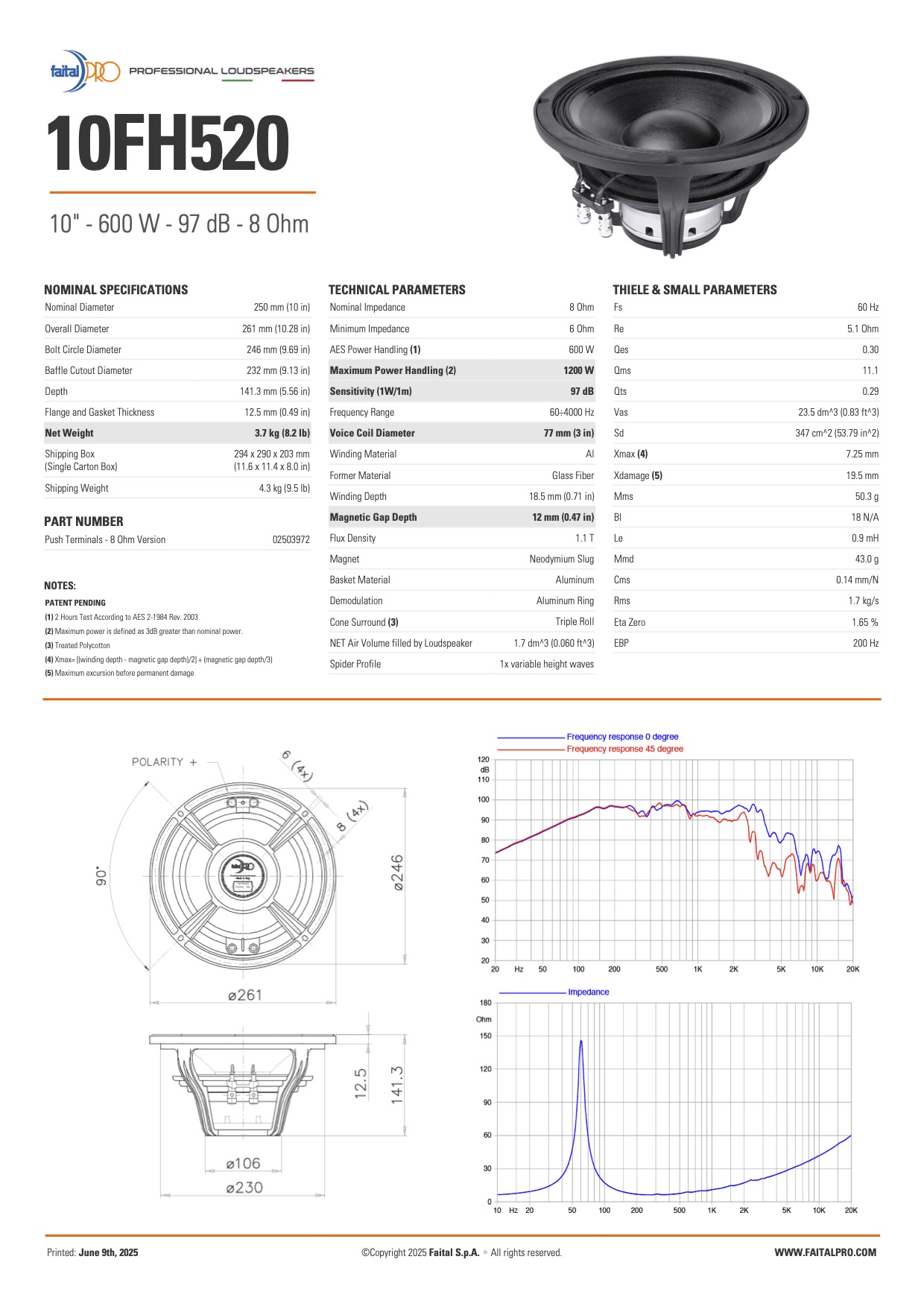

Faital Pro 10FH520 LF Driver

€ 260.00 *Standaard Prijs is RRP exclusief btw € 314.60 inclusief btw

Aantal

NOMINAL SPECIFICATIONS
Nominal Diameter	250 mm (10 in)
Overall Diameter	261 mm (10.28 in)
Bolt Circle Diameter	246 mm (9.69 in)
Baffle Cutout Diameter	232 mm (9.13 in)
Depth	141.3 mm (5.56 in)
Flange and Gasket Thickness	12.5 mm (0.49 in)
Net Weight	3.7 kg (8.2 lb)
Shipping Box	294 x 290 x 203 mm
(Single Carton Box)	(11.6 x 11.4 x 8.0 in)
Shipping Weight	4.3 kg (9.5 lb)


TECHNICAL PARAMETERS
Nominal Impedance	8 Ohm
Minimum Impedance	6 Ohm
AES Power Handling (1)	600 W
Maximum Power Handling (2)	1200 W
Sensitivity (1W/1m)	97 dB
Frequency Range	60÷4000 Hz
Voice Coil Diameter	77 mm (3 in)
Winding Material	Al
Former Material	Glass Fiber
Winding Depth	18.5 mm (0.71 in)
Magnetic Gap Depth	12 mm (0.47 in)
Flux Density	1.1 T
Magnet	Neodymium Slug
Basket Material	Aluminum
Demodulation	Aluminum Ring
Cone Surround (3)	Triple Roll
NET Air Volume filled by Loudspeaker	1.7 dm^3 (0.060 ft^3)
Spider Profile	1x variable height waves
THIELE AND SMALL PARAMETERS
Fs	60 Hz
Re	5.1 Ohm
Qes	0.30
Qms	11.1
Qts	0.29
Vas	23.5 dm^3 (0.83 ft^3)
Sd	347 cm^2 (53.79 in^2)
Xmax (4)	7.25 mm
Xdamage (5)	19.5 mm
Mms	50.3 g
Bl	18 N/A
Le	0.9 mH
Mmd	43.0 g
Cms	0.14 mm/N
Rms	1.7 kg/s
Eta Zero	1.65 %
EBP	200 Hz
