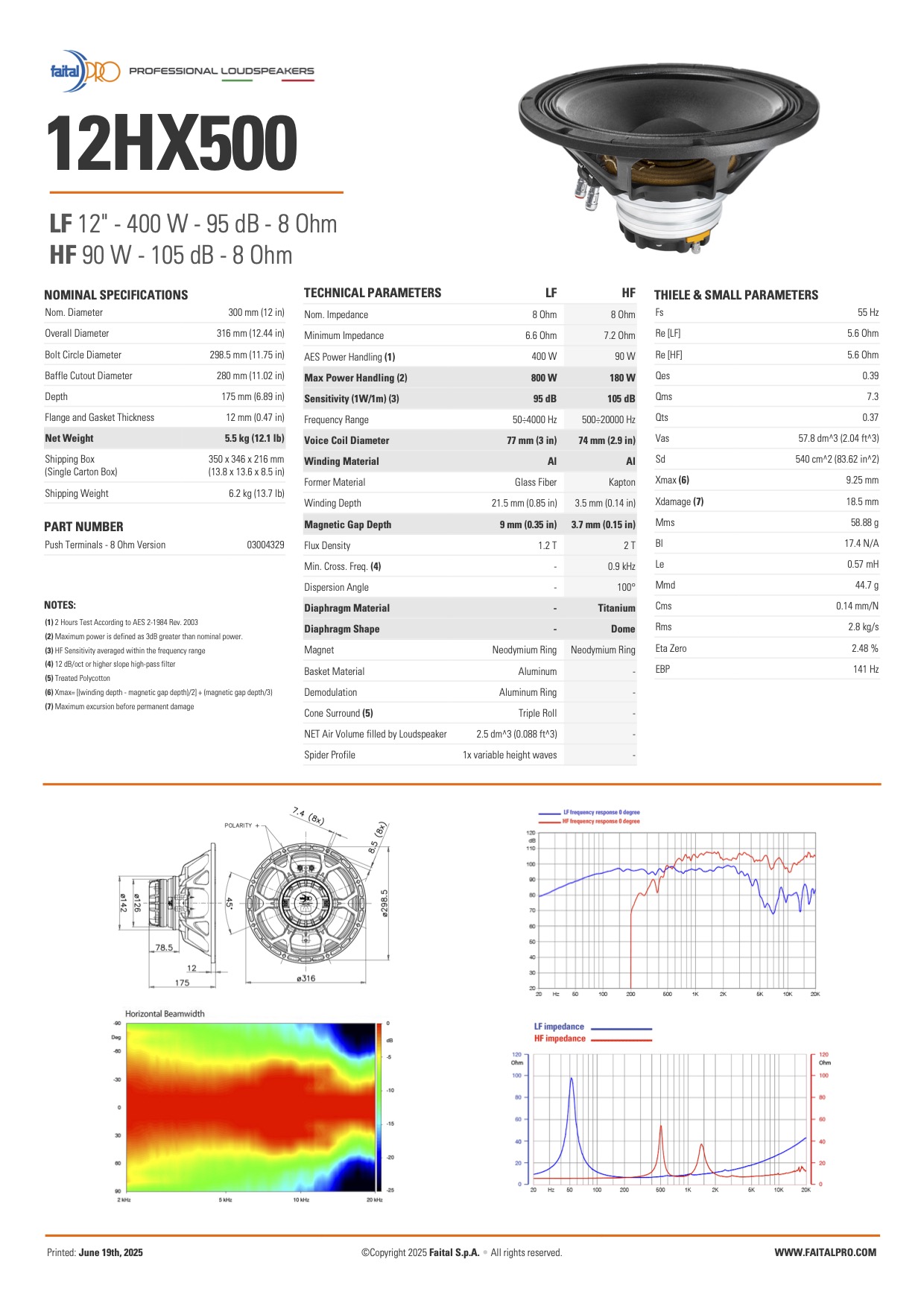

Faital Pro 12HX500 Coaxial Driver (8 ohm)

€ 670.00 *Standaard Prijs is RRP exclusief btw € 810.70 inclusief btw

Aantal

NOMINAL SPECIFICATIONS
Nom. Diameter	300 mm (12 in)
Overall Diameter	316 mm (12.44 in)
Bolt Circle Diameter	298.5 mm (11.75 in)
Baffle Cutout Diameter	280 mm (11.02 in)
Depth	175 mm (6.89 in)
Flange and Gasket Thickness	12 mm (0.47 in)
Net Weight	5.5 kg (12.1 lb)
Shipping Box	350 x 346 x 216 mm
(Single Carton Box)	(13.8 x 13.6 x 8.5 in)
Shipping Weight	6.2 kg (13.7 lb)



TECHNICAL PARAMETERS	{ LF }	{ HF }
Nom. Impedance	8 Ohm	8 Ohm
Minimum Impedance	6.6 Ohm	7.2 Ohm
AES Power Handling (1)	400 W	90 W
Max Power Handling (2)	800 W	180 W
Sensitivity (1W/1m) (3)	95 dB	105 dB
Frequency Range	50÷4000 Hz	500÷20000 Hz
Voice Coil Diameter	77 mm (3 in)	74 mm (2.9 in)
Winding Material	Al	Al
Former Material	Glass Fiber	Kapton
Winding Depth	21.5 mm (0.85 in)	3.5 mm (0.14 in)
Magnetic Gap Depth	9 mm (0.35 in)	3.7 mm (0.15 in)
Flux Density	1.2 T	2 T
Min. Cross. Freq. (4)	-	0.9 kHz
Dispersion Angle	-	100°
Diaphragm Material	-	Titanium
Diaphragm Shape	-	Dome
Magnet	Neodymium Ring	Neodymium Ring
Basket Material	Aluminum	-
Demodulation	Aluminum Ring	-
Cone Surround (5)	Triple Roll	-
NET Air Volume filled by Loudspeaker	2.5 dm^3 (0.088 ft^3)	-
Spider Profile	1x variable height waves	-

THIELE AND SMALL PARAMETERS { LF }
Fs	55 Hz
Re [LF]	5.6 Ohm
Re [HF]	5.6 Ohm
Qes	0.39
Qms	7.3
Qts	0.37
Vas	57.8 dm^3 (2.04 ft^3)
Sd	540 cm^2 (83.62 in^2)
Xmax (6)	9.25 mm
Xdamage (7)	18.5 mm
Mms	58.88 g
Bl	17.4 N/A
Le	0.57 mH
Mmd	44.7 g
Cms	0.14 mm/N
Rms	2.8 kg/s
Eta Zero	2.48 %
EBP	141 Hz
