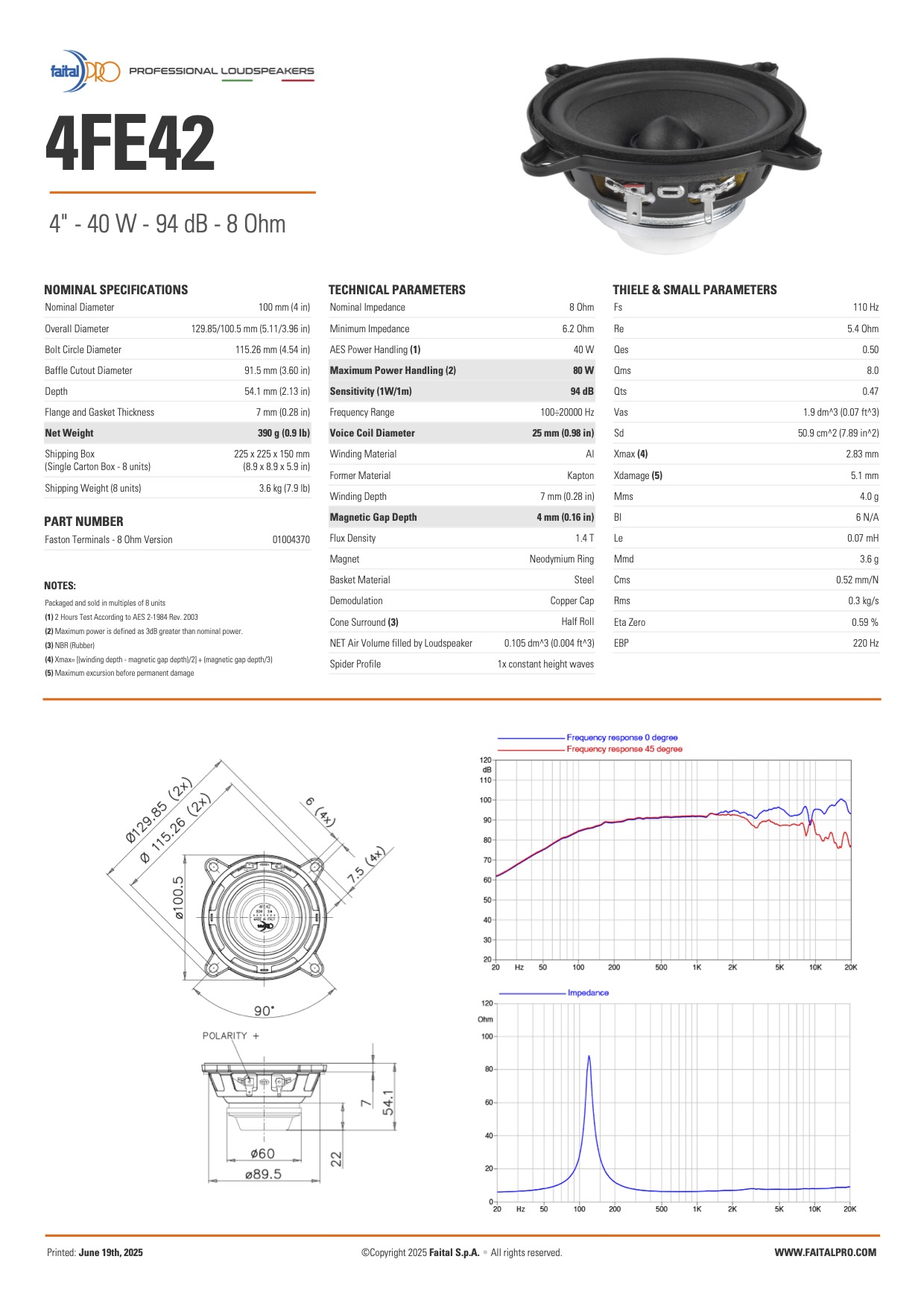

Faital Pro 4FE42 LF Driver (8 ohm)

€ 47.00 *Standaard Prijs is RRP exclusief btw € 56.87 inclusief btw

Op bestelling leverbaar

Aantal

NOMINAL SPECIFICATIONS

Nominal Diameter	100 mm (4 in)
Overall Diameter	129.85/100.5 mm (5.11/3.96 in)
Bolt Circle Diameter	115.26 mm (4.54 in)
Baffle Cutout Diameter	91.5 mm (3.60 in)
Depth	54.1 mm (2.13 in)
Flange and Gasket Thickness	7 mm (0.28 in)
Net Weight	390 g (0.9 lb)
Shipping Box	225 x 225 x 150 mm
(Single Carton Box - 8 units)	(8.9 x 8.9 x 5.9 in)
Shipping Weight (8 units)	3.6 kg (7.9 lb)

TECHNICAL PARAMETERS

Nominal Impedance	8 Ohm
Minimum Impedance	6.2 Ohm
AES Power Handling (1)	40 W
Maximum Power Handling (2)	80 W
Sensitivity (1W/1m)	93 dB
Frequency Range	100÷20000 Hz
Voice Coil Diameter	25 mm (0.98 in)
Winding Material	Al
Former Material	Kapton
Winding Depth	7 mm (0.28 in)
Magnetic Gap Depth	4 mm (0.16 in)
Flux Density	1.4 T
Magnet	Neodymium Ring
Basket Material	Steel
Demodulation	Copper Cap
Cone Surround (3)	Half Roll
NET Air Volume filled by Loudspeaker	0.105 dm^3 (0.004 ft^3)
Spider Profile	1x constant height waves

THIELE AND SMALL PARAMETERS

Fs	110 Hz
Re	3.5 Ohm
Qes	0.4
Qms	6.6
Qts	0.38
Vas	1.8 dm^3 (0.06 ft^3)
Sd	50.9 cm^2 (7.89 in^2)
Xmax (4)	2.83 mm
Xdamage (5)	5.1 mm
Mms	4.3 g
Bl	5.4 N/A
Le	0.05 mH
Mmd	3.9 g
Cms	0.49 mm/N
Rms	0.5 kg/s
Eta Zero	0.64 %
EBP	275 Hz
