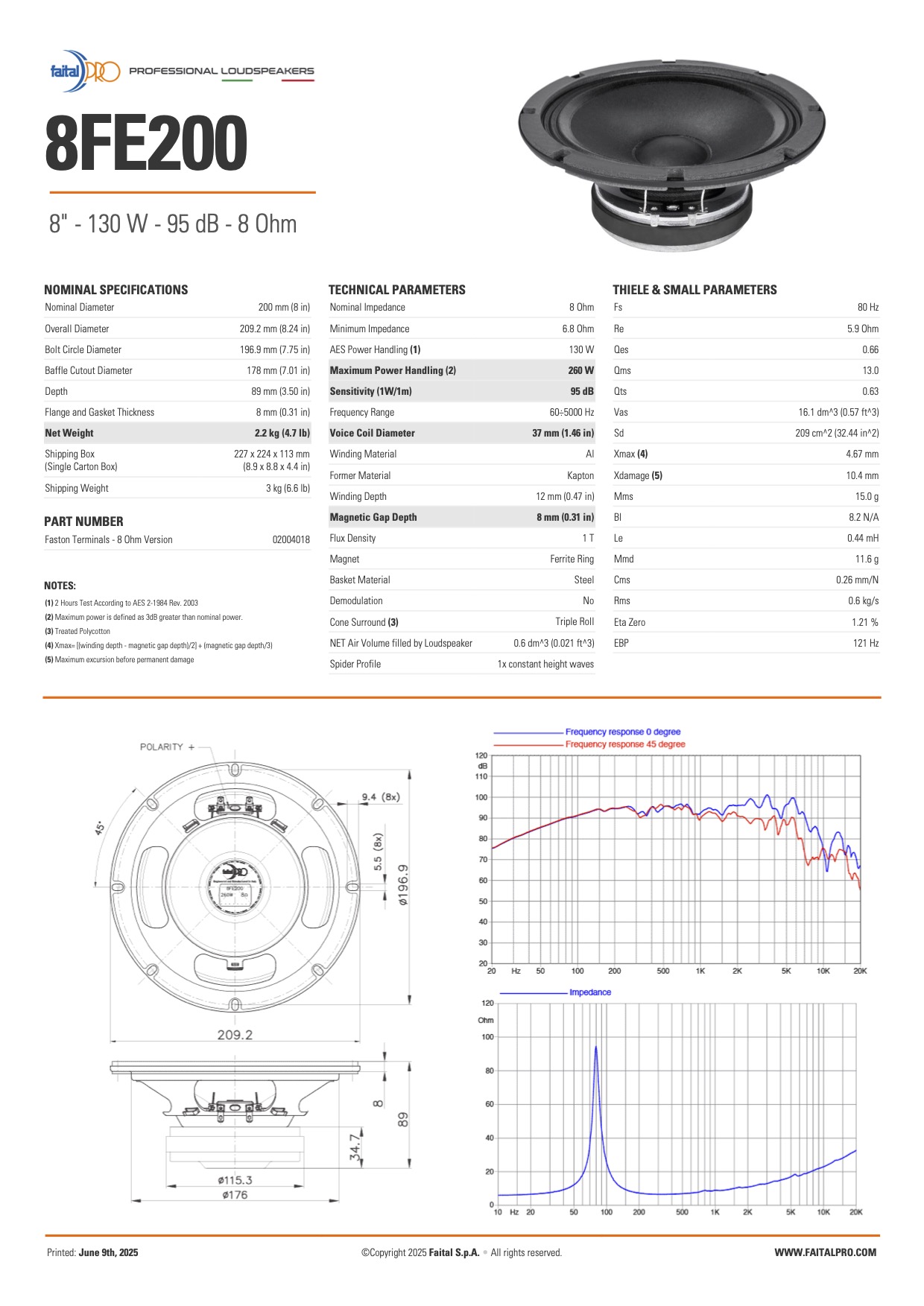

Faital Pro 8FE200 LF Driver (8 ohm)

€ 49.00 *Standaard Prijs is RRP exclusief btw € 59.29 inclusief btw

Aantal

NOMINAL SPECIFICATIONS
Nominal Diameter	200 mm (8 in)
Overall Diameter	209.2 mm (8.24 in)
Bolt Circle Diameter	196.9 mm (7.75 in)
Baffle Cutout Diameter	178 mm (7.01 in)
Depth	89 mm (3.50 in)
Flange and Gasket Thickness	8 mm (0.31 in)
Net Weight	2.2 kg (4.7 lb)
Shipping Box	227 x 224 x 113 mm
(Single Carton Box)	(8.9 x 8.8 x 4.4 in)
Shipping Weight	3 kg (6.6 lb)


TECHNICAL PARAMETERS
Nominal Impedance	8 Ohm
Minimum Impedance	6.8 Ohm
AES Power Handling (1)	130 W
Maximum Power Handling (2)	260 W
Sensitivity (1W/1m)	95 dB
Frequency Range	60÷5000 Hz
Voice Coil Diameter	37 mm (1.46 in)
Winding Material	Al
Former Material	Kapton
Winding Depth	12 mm (0.47 in)
Magnetic Gap Depth	8 mm (0.31 in)
Flux Density	1 T
Magnet	Ferrite Ring
Basket Material	Steel
Demodulation	No
Cone Surround (3)	Triple Roll
NET Air Volume filled by Loudspeaker	0.6 dm^3 (0.021 ft^3)
Spider Profile	1x constant height waves
THIELE AND SMALL PARAMETERS
Fs	80 Hz
Re	5.9 Ohm
Qes	0.66
Qms	13.0
Qts	0.63
Vas	16.1 dm^3 (0.57 ft^3)
Sd	209 cm^2 (32.44 in^2)
Xmax (4)	4.67 mm
Xdamage (5)	10.4 mm
Mms	15.0 g
Bl	8.2 N/A
Le	0.44 mH
Mmd	11.6 g
Cms	0.26 mm/N
Rms	0.6 kg/s
Eta Zero	1.21 %
EBP	121 Hz
