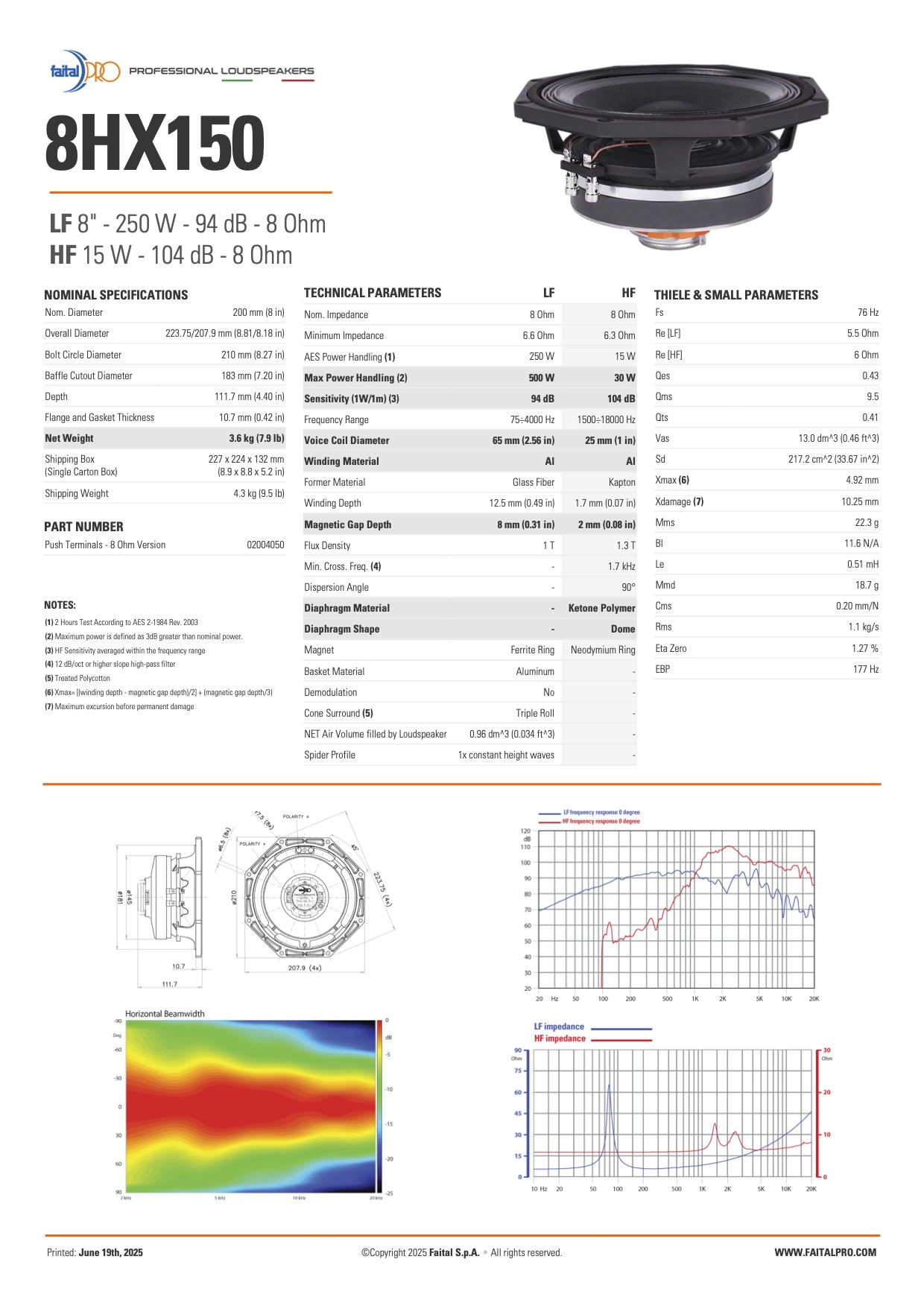

Faital Pro 8HX150 Coaxial Driver

€ 220.00 *Standaard Prijs is RRP exclusief btw € 266.20 inclusief btw

Op bestelling leverbaar

Aantal

NOMINAL SPECIFICATIONS
Nom. Diameter	200 mm (8 in)
Overall Diameter	223.75/207.9 mm (8.81/8.18 in)
Bolt Circle Diameter	210 mm (8.27 in)
Baffle Cutout Diameter	183 mm (7.20 in)
Depth	111.7 mm (4.40 in)
Flange and Gasket Thickness	10.7 mm (0.42 in)
Net Weight	3.6 kg (7.9 lb)
Shipping Box	227 x 224 x 132 mm
(Single Carton Box)	(8.9 x 8.8 x 5.2 in)
Shipping Weight	4.3 kg (9.5 lb)



TECHNICAL PARAMETERS	{ LF }	{ HF }
Nom. Impedance	8 Ohm	8 Ohm
Minimum Impedance	6.6 Ohm	6.3 Ohm
AES Power Handling (1)	250 W	15 W
Max Power Handling (2)	500 W	30 W
Sensitivity (1W/1m) (3)	94 dB	104 dB
Frequency Range	75÷4000 Hz	1500÷18000 Hz
Voice Coil Diameter	65 mm (2.56 in)	25 mm (1 in)
Winding Material	Al	Al
Former Material	Glass Fiber	Kapton
Winding Depth	12.5 mm (0.49 in)	1.7 mm (0.07 in)
Magnetic Gap Depth	8 mm (0.31 in)	2 mm (0.08 in)
Flux Density	1 T	1.3 T
Min. Cross. Freq. (4)	-	1.7 kHz
Dispersion Angle	-	90°
Diaphragm Material	-	Ketone Polymer
Diaphragm Shape	-	Dome
Magnet	Ferrite Ring	Neodymium Ring
Basket Material	Aluminum	-
Demodulation	No	-
Cone Surround (5)	Triple Roll	-
NET Air Volume filled by Loudspeaker	0.96 dm^3 (0.034 ft^3)	-
Spider Profile	1x constant height waves	-

THIELE AND SMALL PARAMETERS { LF }
Fs	76 Hz
Re [LF]	5.5 Ohm
Re [HF]	6 Ohm
Qes	0.43
Qms	9.5
Qts	0.41
Vas	13.0 dm^3 (0.46 ft^3)
Sd	217.2 cm^2 (33.67 in^2)
Xmax (6)	4.92 mm
Xdamage (7)	10.25 mm
Mms	22.3 g
Bl	11.6 N/A
Le	0.51 mH
Mmd	18.7 g
Cms	0.20 mm/N
Rms	1.1 kg/s
Eta Zero	1.27 %
EBP	177 Hz
